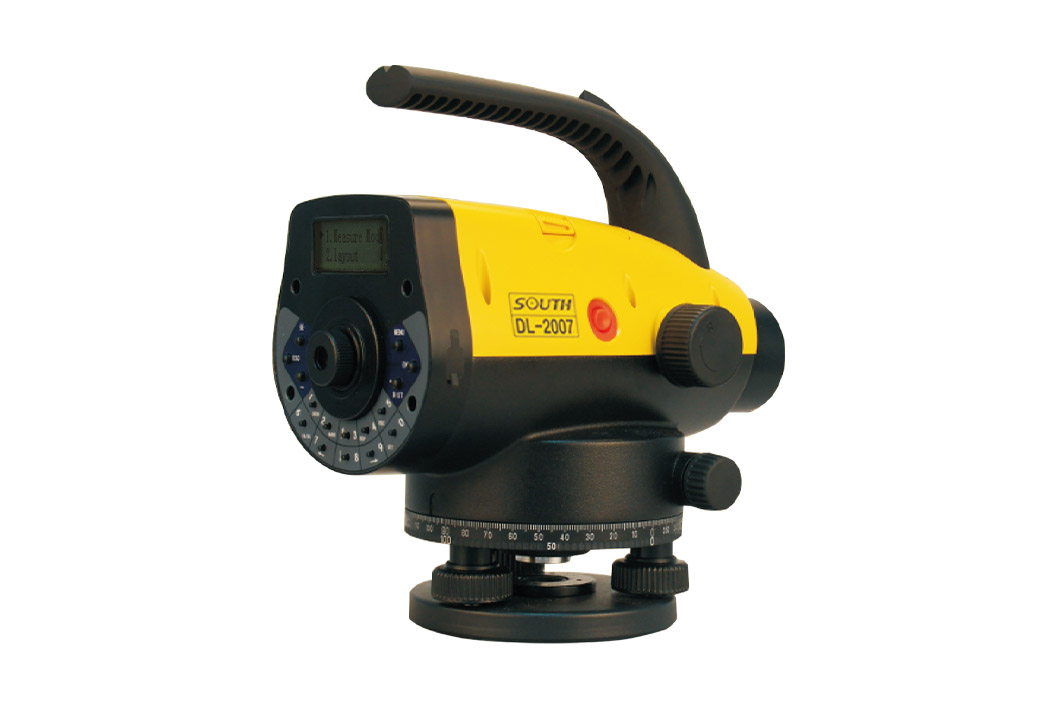

DL-2007

● Accuracy:
Height: 0.7mm; Distance: D≤10m:10mm; D>10m:D*0.001
● Measure and Record by Trigger Key
● Four-Lines LCD Display with Illumination
● Easy-to-Use Onboard Program

Compare

Versatile Onboard Program

South DL series Digital Level guarantee your fast and efficient  operation in leveling by its powerful onboard program. Combine with the automatic processing , station checking and over-tolerance alarming function, South DL Series Digital Level can easily calculate the height difference and the cumulative stadia difference on the field.

Wide Applications



Topographic survey

(detail and area measurement, contour line and occupied point settlement)

Tunnel, railway and road constructions

(cross-section leveling, slope control, abrasion monitoring, etc.)

Deformation monitoring

(settlement observation, loading check)

Industrial measurement

(The leveling for base or foundation settlement about machines, ground and platform.)

SPECIFICATIONS

Height Accuracy (standard deviation for 1km double run leveling) Digital Reading 0.7mm
Optical Reading 2.0mm
Distance Accuracy Digital Reading D≤10m:10mm; D>10m:D*0.001
Distance Range Digital Reading 2m~110m
Minimum Display HD 1mm/ 0.1mm
Distance 0.1/ 1cm
Measuring Time within 3s in normal condition
Telescope Magnification 32X
Resolving Power 3″
Field of View 1°30′
Multiple Constant 100
Additive Constant 0
Compensator Type magnetic-damped
Range >±12′
Accuracy 0.30″/ 1′
Data Storage Storage 16MB
Point Name increasing/ decreasing/ customized
Connection USB
External Storage SD Card
Circular vial Accuracy 8’/ 2mm
Display 160*64dpi LCD with illumination
Working Temperature -20°C ~ 50°C
Dimension 230mm X 150mm X 210mm
Weight 2.5kg
IP Standard IP54

Note: all information above is subject to change without any prior notice.
