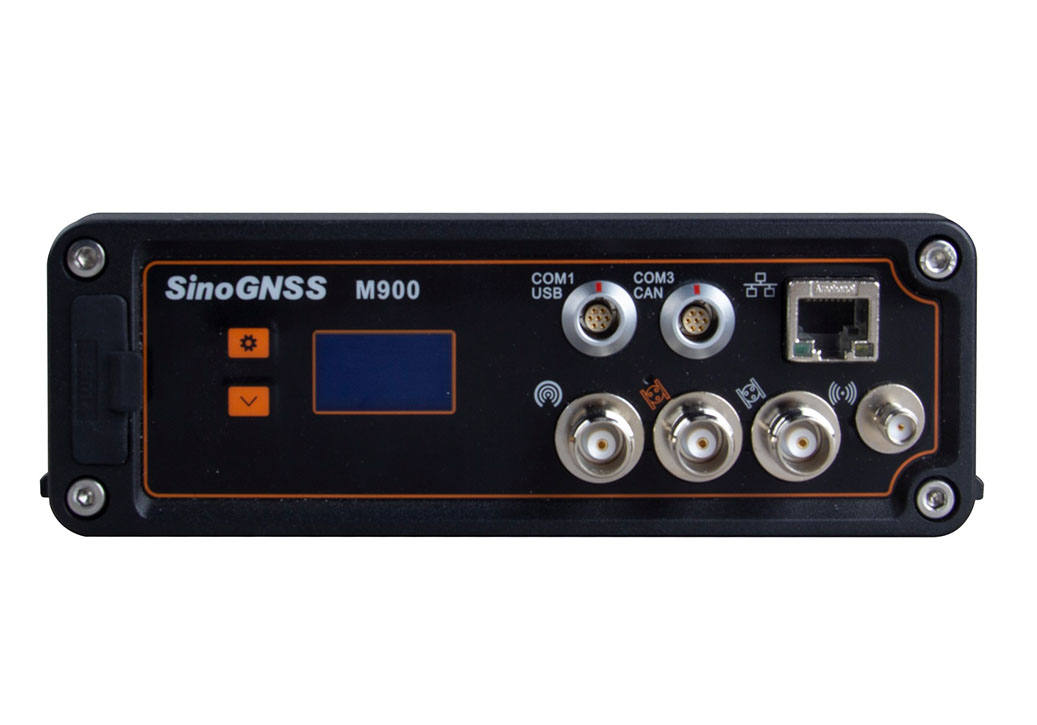

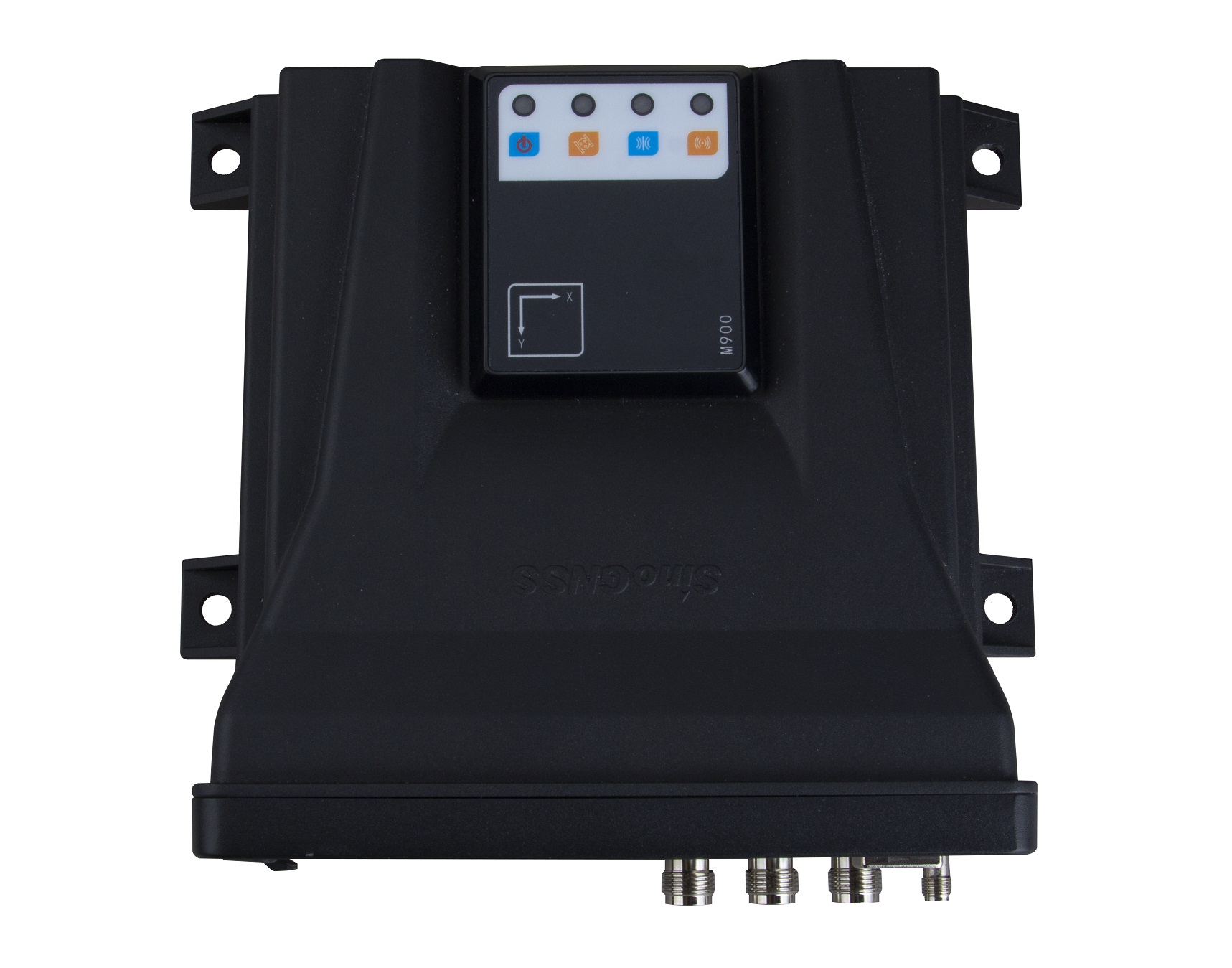

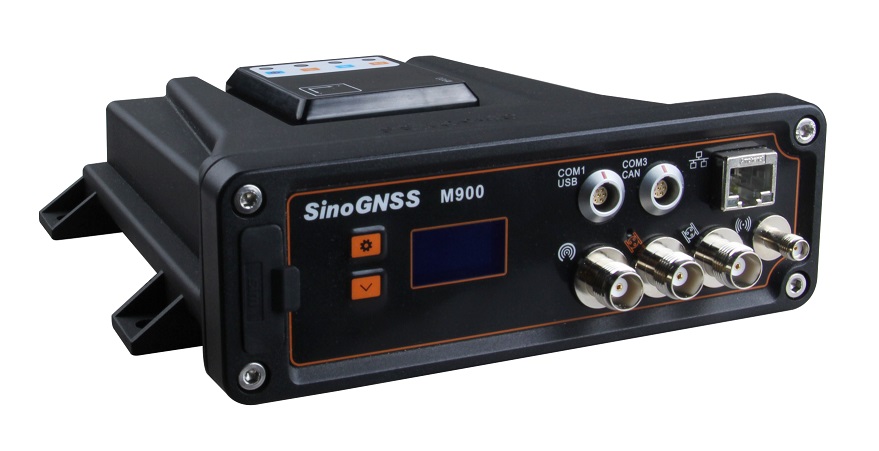

M900 GNSS Receiver

Featuring advanced QUANTUMTM technology, integrated navigation, flexible transmission and rugged proof-level, M900 is a wise choice for unmanned systems and navigation applications.


Full-constellation tracking

The M900 features 1226 channels for tracking all current and planned satellite constellations, including GPS, GLONASS, Beidou, Beidou global, Galileo, QZSS, IRNSS, SBAS and L-Band.

INS+GNSS navigation

Equipped with a built-in high-precision IMU module, which can provide continuous and high-quality positioning data with inertial navigation fusion algorithm.

Flexible transmission

Designed with alternative 4G/UHF/WIFI/Bluetooth® communications for flexible data transmission, standard data formats and protocols for versatile applications.

  • Dual-antenna Design for Positioning and Heading
  • Dual-propose Receiver for Both Base Station and Rover
  • Support INS+GNSS integrated navigation
  • GPS L1/L2, BeiDou B1/B3, BeiDou Global B1C/B2b, GLONASS L1/L2, Galileo E1/E5b, QZSS, IRNSS, SBAS, L-Band
  • Flexible Bluetooth®/UHF/WIFI/4G Communications
  • Advanced QUANTUMTM Technology
  • 8GB Large Memory
  • LAN and WIFI support Web Server Configuration
  • IP68 waterproof and dustproof level
  • User-friendly OLED display and LED status indicators
Channels: 1226
Satellite tracking:
  • GPS: L1 C/A, L2C, L2P
  • BeiDou: B1, B3
  • BeiDou Global Signal: B1C, B2b
  • GLONASS: L1 C/A, L1P, L2 C/A, L2P
  • Galileo: E1, E5b
  • L-Band
Post Processing: Horizontal: 2.5 mm + 1 ppm
Single Baseline RTK: Horizontal: 8 mm+1 ppm
Size (L x W x H): 183mm × 171mm × 56mm
Weight:  1kg
External power supply: 5V~27V
Power consumption: < 3W
Working temperature: 40 ℃ to + 75 ℃
Storage temperature: 55 ℃ to + 85 ℃
95% no condensation
Shock: Designed to survive a 1m drop onto concrete
Waterproof and dustproof: IP68
Bluetooth® BT4.1, Compatible with Android and Windows mobile OS
4G modem TCP/IP, HTTP, Ntrip protocols
UHF modem
  • 1 UHF connector
  • 2 external GNSS antenna connectors
2 7-pin lemo ports
  • Standard RS232, CAN, USB2.0 protocol
  • 1 CAN BUS/COM3/power
  • 1 USB/COM1/power
1 SMA connector 4G antenna connector
1 RJ45 connector Ethernet interface
1 OLED display Status monitoring
