● High resolution 32X telescope
● ±0.3″ compensator accuracy
● Standard deviation: 1.0mm


uto Level Magnification 32x
Effective Objective Aperture 45mm
Image Erect
Reticle Cross Reticle
Field of View 1°30′ (2.6m /100m)
Minimum Focus Distance 0.6m
Multiplication Constant 100
Additive Constant 0

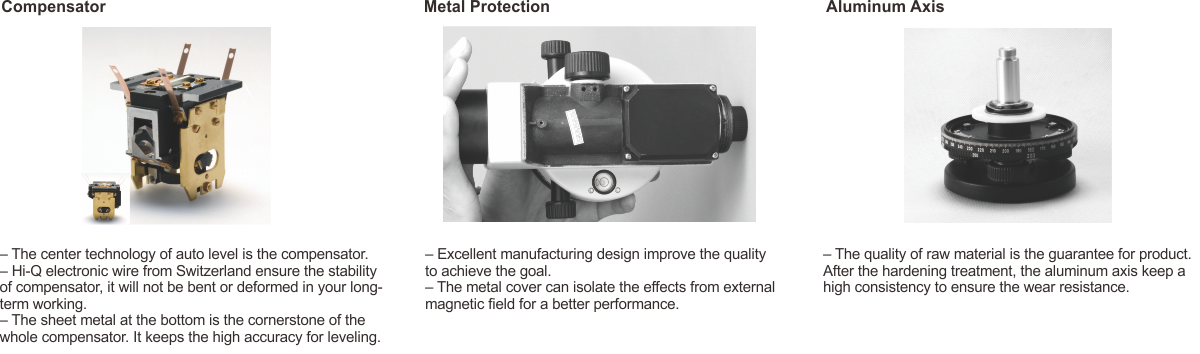

Compensator Type Magnetic Damping
Compensator Range ±15′
Compensator Setting Time <1s
Compensator Setting Accuracy ±0.3″
Standard 1km Deviation 1.0mm
Sensitivity of Bubble 8′ /2mm
Circle Graduation 360° or 400 gon (Minimum 1°or 1 gon)
Protection Class IP65
Working Temperature -20℃ ~ +50℃
Storage Temperature -40℃ ~ +70℃
Net Weight per Unit 2.2kg
Package Size (4 PCS/CTN) 465×340×445(mm)
Gross Weight (4 PCS/CTN) 15kg

Note: all information above is subject to change without any prior notice.
