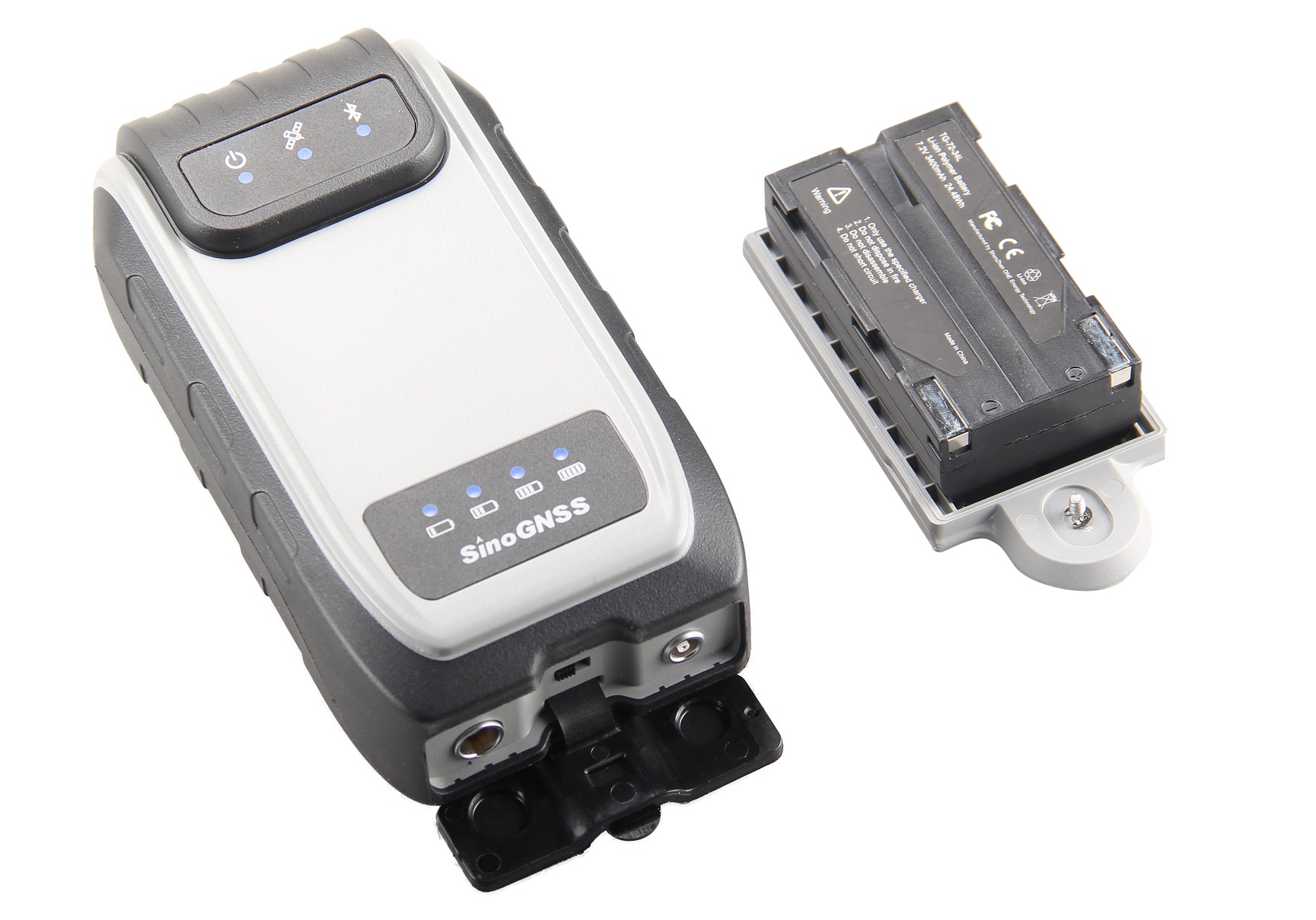

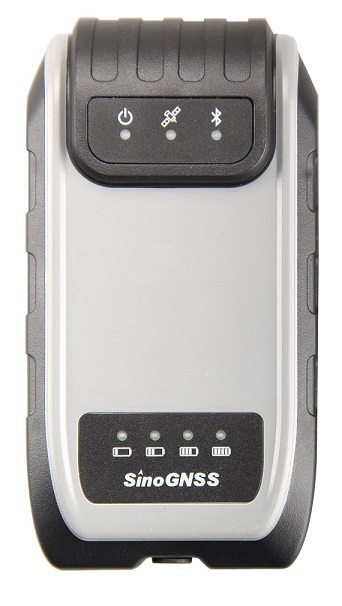

G100 GNSS Receiver

According to your working demands, the G100 can be mounted on a pole, carried in your pocket, or attached to a belt. The 3400 mAh battery provides up to 9 hour continuous operation, and fast charging design can save much of your time, enhancing efficiency and productivity in the field.


Bluetooth connection

Fluent Bluetooth connection support multiple data collection devices choices.

Large capacity battery

The 3400 mAh battery supports G100 over 9-hour continous operation in the field.

Built-in GNSS antenna

The built-in GNSS antenna design ensures flexible wearable modes such as carried G100 in an armband bag or a shirt pocket.

  • GPS L1, BeiDou B1, GLONASS L1, SBAS
  • Sub-meter Positioning Accuracy
  • Ideal for GIS Applications
  • Compact Rugged Design
  • Multiple Data Collection Device Choices via Bluetooth Connection
  • Intergrated GNSS Antenna
Signal tracking Channels: 200 channels
Satellite tracking: GPS L1, BeiDou B1, GLONASS L1
Post Processing Horizontal accuracy: 2.5 mm + 1 ppm
Post Processing Vertical accuracy: 5 mm + 1 ppm
DGPS: <0.4 m 3D RMS
SBAS: 1 m 3D RMS
Size(W × H): Φ13.7cm × 7.2cm × 5.04cm
Weight (incl. supplied one battery): <0.35kg
Operating temperature: -20 °C to 60 °C
Shock: Designed to survive a 1.5 m drop onto concrete
Waterproof and dustproof: IP65
Power consumption: 1.6 W

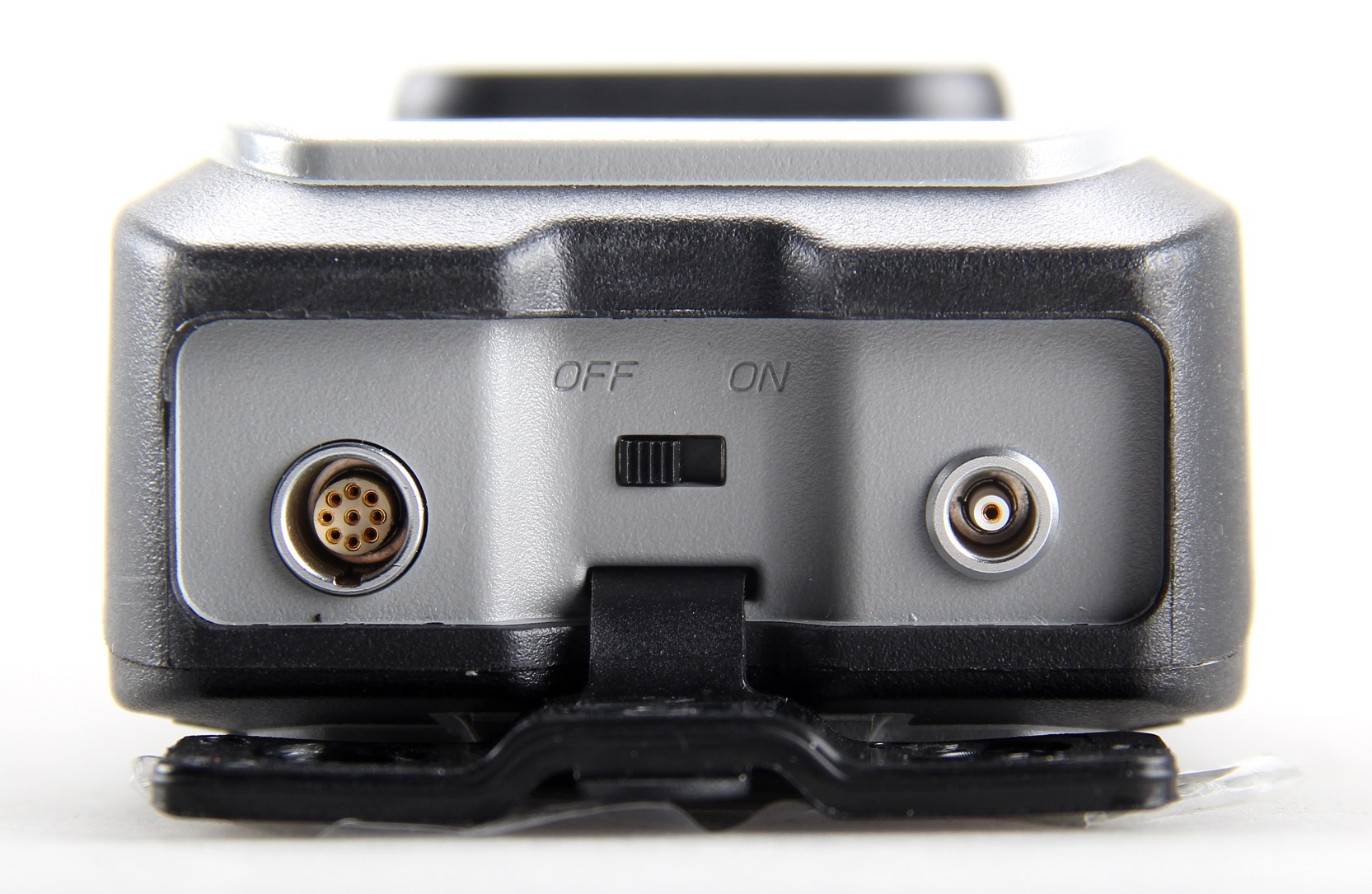

Serial port: 1 9pin Fischer
Protocol: Ntrip (software based)
Bluetooth® V4.0, compatible with Android      and WindowsTM mobile OS
Position data output: NMEA-0183, ComNav Binary
