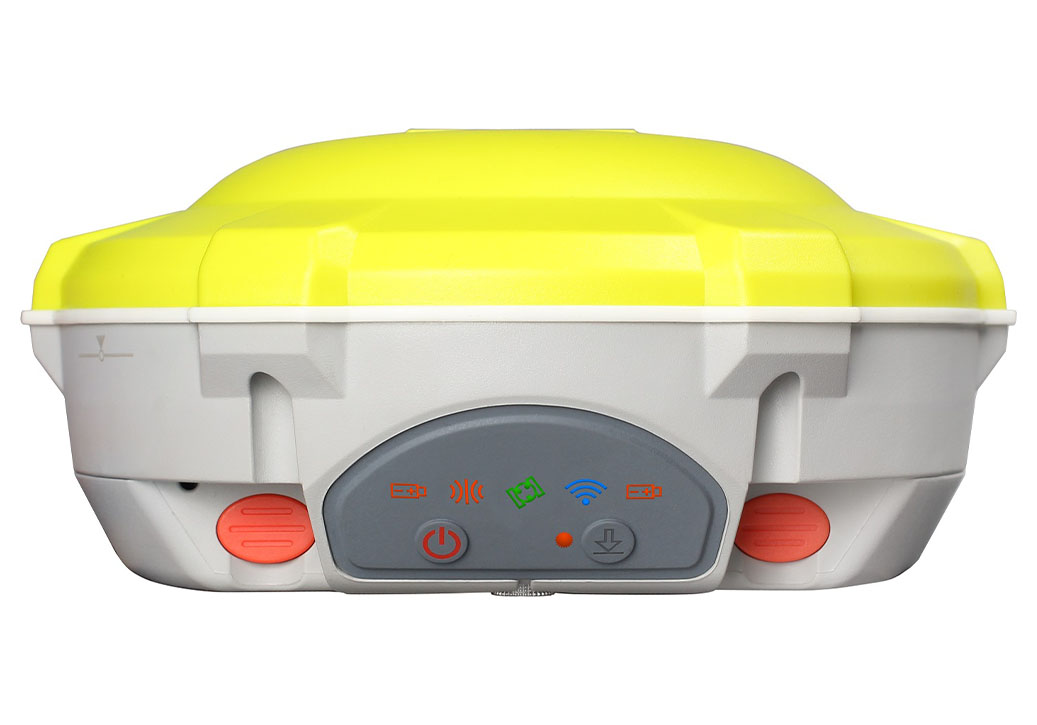

T300SE GNSS Receiver

SinoGNSS T300 GNSS receiver is a compact RTK GNSS receiver tracking all working constellations, combines 4G/TX & RX into one device, and work fluently with Android-based Survey Master software, for centimeter accuracy survey on demand.

[cmt-custom-heading text=”Features” font_container=”tag:h4|text_align:left|color:#ffffff”]
  • GPS L1/L2/L5, BeiDou B1/B2/B3,GLONASS L1/L2, Galileo E1/E5a/E5b
  • Compact Design
  • Hot Swap Battery
  • User-friendly Interface
  • Support Long Baseline E-RTK
[cmt-custom-heading text=”Downloads” font_container=”tag:h6|text_align:left”]
Full-constellation tracking

The T300 tracks all working and planned GNSS constellations including GPS, GLONASS, BeiDou, Galileo and SBAS.

Built in 4G/TX & RX

Built-in GPRS/ GSM/4G modem ensures the T300 seamlessly work with all kinds of CORS, and 0 – 2 Watt internal UHF allows you more convenient and effective field work.

Intuitive workflow

The T300 is able to provide easier survey workflow via Survey Master, improving productivity for both beginners and professional surveyors.

Signal tracking Channels: 572 Channels
Satellite tracking: GPS, BeiDou, GLONASS, Galileo and SBAS
RTK Horizontal accuracy: 8mm 1ppm
RTK Vertical accuracy: 15mm 1ppm
Post Processing Horizontal accuracy: 2.5mm 1ppm
Post Processing Vertical accuracy: 5mm 1ppm
Initialization time: less than 10s
Size (W × H): Φ15.8 cm × 7.5 cm
Weight (incl. supplied two batteries): 0.95 kg (2.1 lb)
Operating temperature: -40 °C to 65 °C (40 °F to 149 °F)
Shock: Designed to survive a 2 m drop onto concrete
Humidity: 100% non-condensing
Waterproof and dustproof: IP67
Power consumption (3 constellations): 3.1 W
Memory:  8 GB
1 Serial port (7 pin Lemo): Baud rates up to 921,600 bps
Correction data I/O: RTCM 2.X, 3.X, CMR, CMR
Position data output rates: 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz
Modem: 4G, 3G, GSM
UHF modem (optional): Tx/Rx, 410-470 MHz
Bluetooth® : V4.0 protocol
