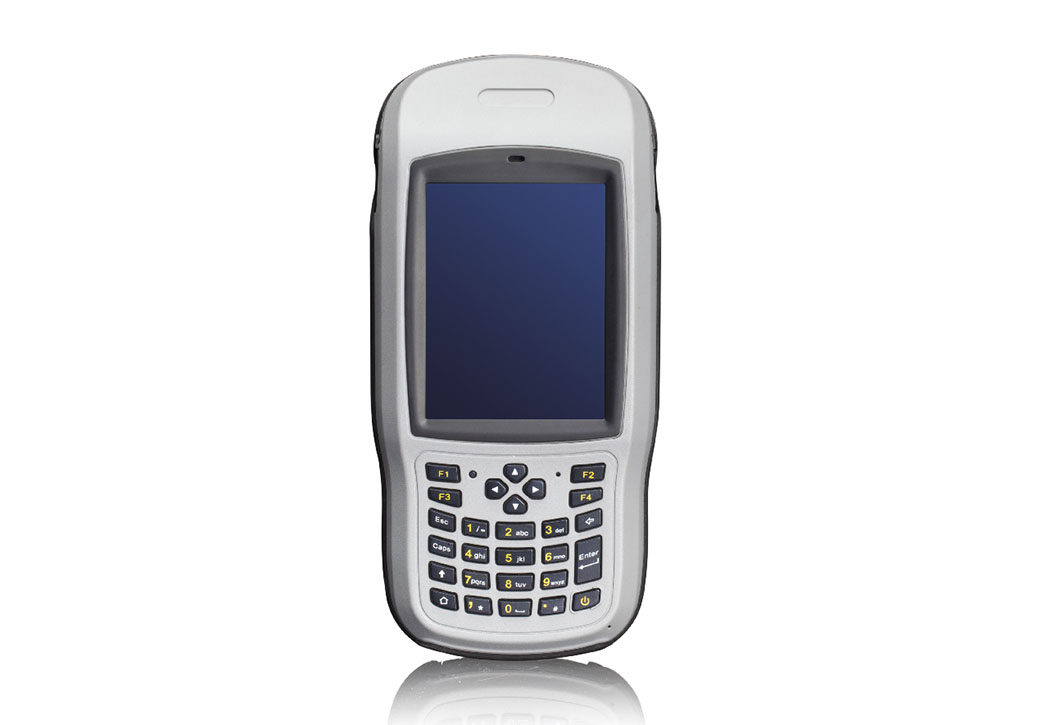

R200 Data Collector

R200 is an industrial handheld, integrated GNSS controller, With a 3.7 inch sunlight readable display and sensitive touch screen, combined with numeric and programmable keypad, the R200 meets your toughest surveying demands.
Compare
Category:

IP65 certified

The IP65 dust and water proof rating ensure the R200 work in harsh environments.

Windows Mobile OS

Powered by Windows Mobile® 6.1 or 6.5 OS, the R200 is compatible with most Windows-based field software.

Wi-Fi and Built-in 3G

Wi-Fi and Built-in 3G cellular modem allow you access real-time maps, web based services and update survey data in real time, meeting your toughest surveying demands.

  • Windows Mobile 6.1/6.5Pro OS
  • MIL-STD 810G and IP65 certified
  • Pressure sensitive touchscreen
  • 3.7″ sunlight readable display
  • 5 MP digital camera
  • Compact design with long battery life
  • 3G, Long range Blutooth   and Wi-Fi Wireless connectivity
  • 27 numeric & programmable keypad
Perfomance
Signal tracking Channels 167
Satellite tracking GPS L1, GLONASS L1 and SBAS
Hot start 1s
Cold start

29s

Standalone Accuracy 3m
SBAS Accuracy

2.5m

Physical



Working environment -20 °C to +60 °C
Storage temperature: -30 °C to +70 °C

Dimensions (L x W x H)

200mm x 96mm x 32mm
Weight 515g with battery
Shock withstand 1.2 meter / 4 foot drop
Vibration MIL-STD810G
Communications
WIFI 802.11b/g/n
GSM/GPRS/EDGE 850/900/1800/1900Mhz

WCDMA

850/900/1900/2100Mhz
Bluetooth® & optional long range Bluetooth® V2.1 Class 2
USB Port Support
Microphone and speaker Built-in
NMEA 0183 protocol Built-in
