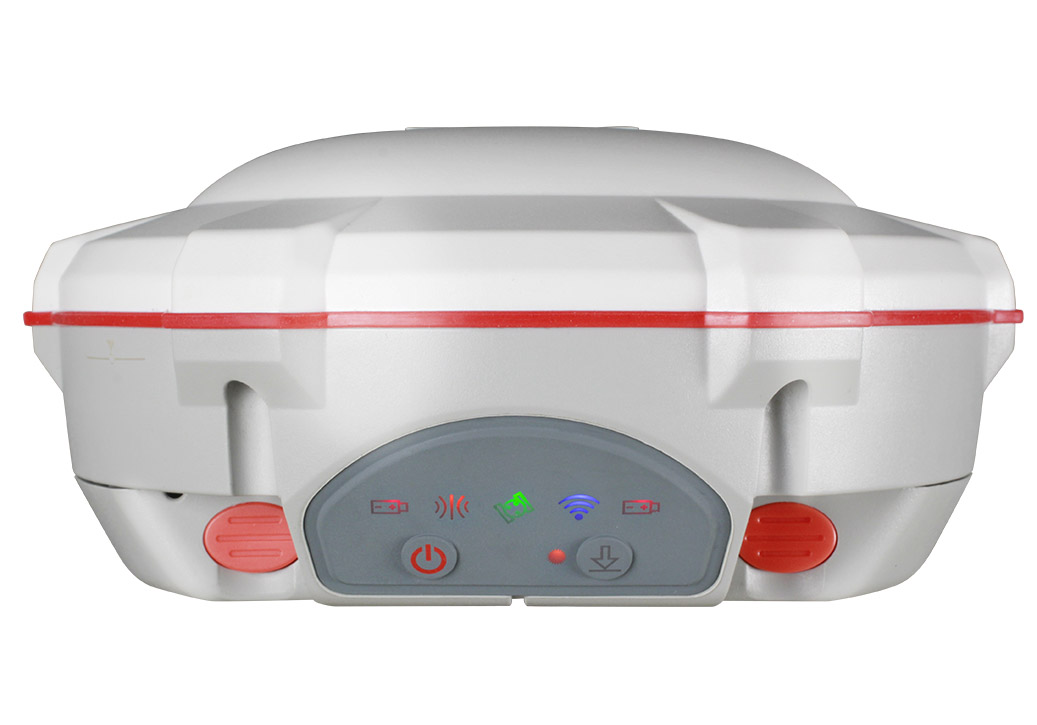

Full-constellation tracking
The T300 tracks all working and planned GNSS constellations including GPS, GLONASS, BeiDou, Galileo and SBAS.
Built in 4G/TX & RX
Built-in GPRS/ GSM/4G modem ensures the T300 seamlessly work with all kinds of CORS, and 0 – 2 Watt internal UHF allows you more convenient and effective field work.
Intuitive workflow
The T300 is able to provide easier survey workflow via Survey Master, improving productivity for both beginners and professional surveyors
- GPS L1/L2/L5, BeiDou B1/B2/B3,GLONASS L1/L2, Galileo E1/E5a/E5b
- Compact Design

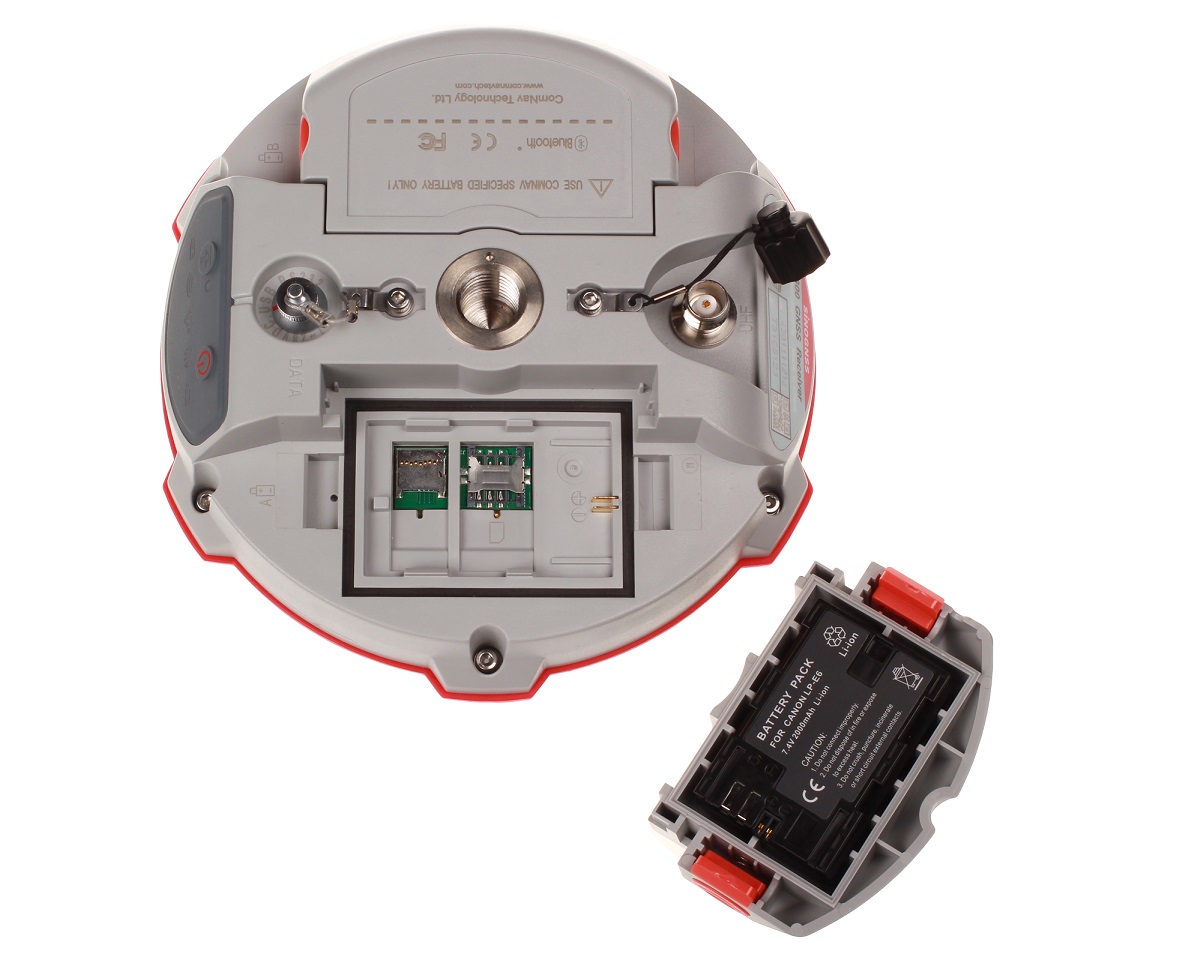

- Hot Swap Battery
- User-friendly Interface
- Built-in 4G/UHF
| Signal tracking Channels: | 572 Channels |
| Satellite tracking: | GPS, BeiDou, GLONASS, Galileo and SBAS |
| RTK Horizontal accuracy: | 8 mm + 1 ppm |
| RTK Vertical accuracy: | 15 mm + 1 ppm |
| Post Processing Horizontal accuracy: | 2.5 mm + 1 ppm |
| Post Processing Vertical accuracy: | 5 mm + 1 ppm |
| Initialization time: | less than 10s |
| Size (W × H): | Φ15.8 cm × 7.5 cm |
| Weight (incl. supplied two batteries): | 0.95 kg (2.1 lb) |
| Operating temperature: | -40 °C to 65 °C (40 °F to 149 °F) |
| Shock: | Designed to survive a 2 m drop onto concrete |
| Humidity: | 100% non-condensing |
| Waterproof and dustproof: | IP67 |
| Power consumption (3 constellations): | 3.1 W |
| Memory: | 8 GB |
| 1 Serial port (7 pin Lemo): | Baud rates up to 921,600 bps |
| Correction data I/O: | RTCM 2.X, 3.X, CMR, CMR |
| Position data output rates: | 1 Hz, 2 Hz, 5 Hz, 10 Hz, 20 Hz |
| Modem: | 4G, 3G, GSM |
| UHF modem (optional): | Tx/Rx, 410-470 MHz |
| Bluetooth® : | V4.0 protocol |
